CandlestickChart
Inherits: LayoutControl
Properties
-
animation(AnimationValue) –Controls chart implicit animations.
-
baseline_x(Number | None) –Baseline value on the X axis.
-
baseline_y(Number | None) –Baseline value on the Y axis.
-
bgcolor(ColorValue | None) –Background color of the chart.
-
border(Border | None) –Border drawn around the chart.
-
bottom_axis(ChartAxis | None) –Appearance of the bottom axis, its title and labels.
-
handle_built_in_touches(bool) –Allows the chart to manage tooltip visibility automatically.
-
horizontal_grid_lines(ChartGridLines | None) –Horizontal grid lines configuration.
-
interactive(bool) –Enables automatic tooltips and highlighting when hovering the chart.
-
left_axis(ChartAxis | None) –Appearance of the left axis, its title and labels.
-
long_press_duration(DurationValue | None) –The duration of a long press on the chart.
-
max_x(Number | None) –Maximum value displayed on the X axis.
-
max_y(Number | None) –Maximum value displayed on the Y axis.
-
min_x(Number | None) –Minimum value displayed on the X axis.
-
min_y(Number | None) –Minimum value displayed on the Y axis.
-
right_axis(ChartAxis | None) –Appearance of the right axis, its title and labels.
-
rotation_quarter_turns(Number) –Number of quarter turns (90-degree increments) to rotate the chart.
-
spots(list[CandlestickChartSpot]) –Candlesticks to display on the chart.
-
tooltip(CandlestickChartTooltip | None) –Tooltip configuration for the chart.
-
top_axis(ChartAxis | None) –Appearance of the top axis, its title and labels.
-
touch_spot_threshold(Number | None) –The distance threshold to consider a touch near a candlestick.
-
vertical_grid_lines(ChartGridLines | None) –Vertical grid lines configuration.
Events
-
on_event(EventHandler[CandlestickChartEvent] | None) –Called when an event occurs on this chart.
Examples#

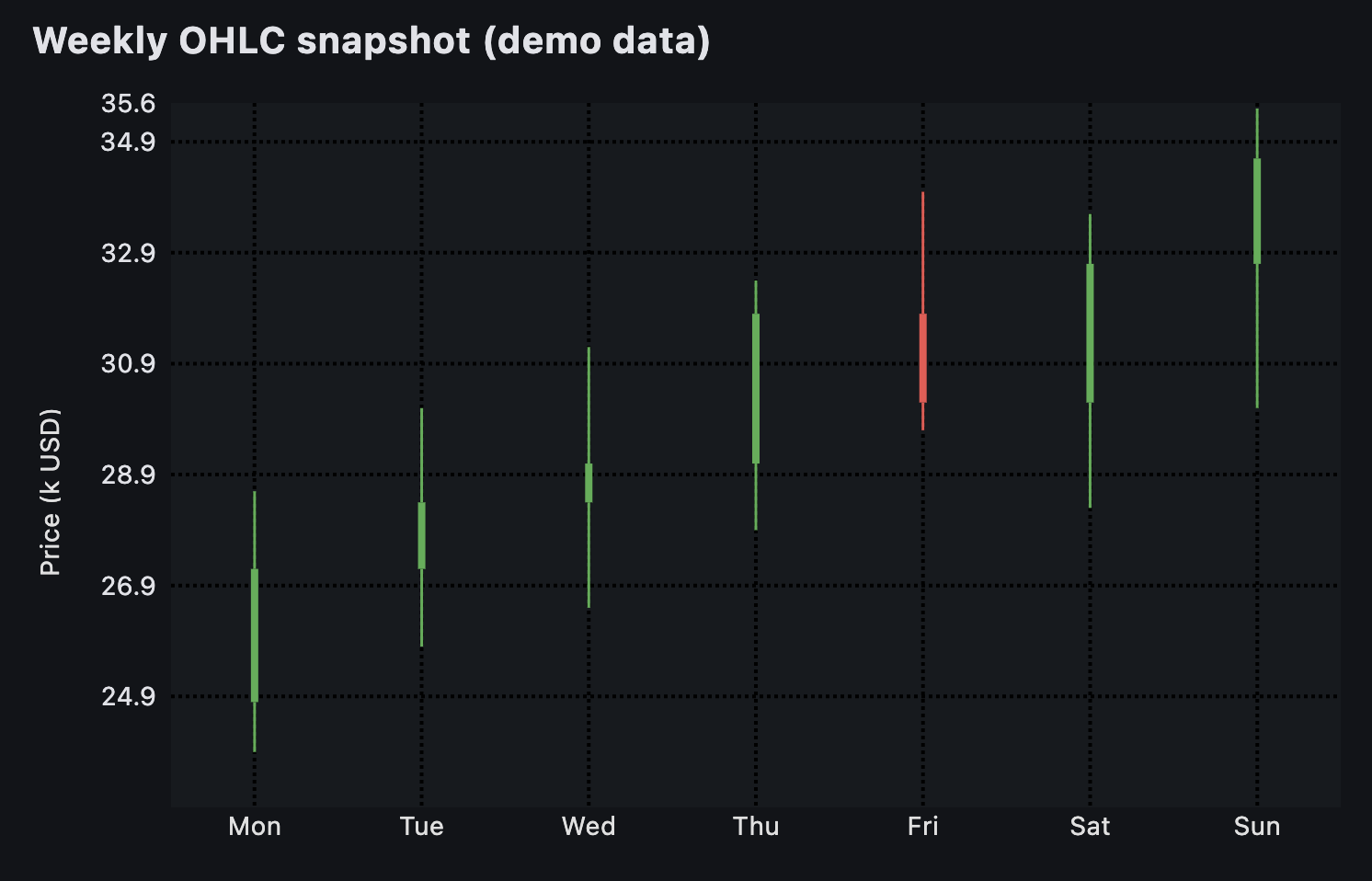

Basic Candlestick Chart#
import flet_charts as ftc
import flet as ft
CANDLE_DATA = [
("Mon", 24.8, 28.6, 23.9, 27.2),
("Tue", 27.2, 30.1, 25.8, 28.4),
("Wed", 28.4, 31.2, 26.5, 29.1),
("Thu", 29.1, 32.4, 27.9, 31.8),
("Fri", 31.8, 34.0, 29.7, 30.2),
("Sat", 30.2, 33.6, 28.3, 32.7),
("Sun", 32.7, 35.5, 30.1, 34.6),
]
def build_spots() -> list[ftc.CandlestickChartSpot]:
"""Create candlestick spots from the static data."""
spots: list[ftc.CandlestickChartSpot] = []
for index, (label, open_, high, low, close) in enumerate(CANDLE_DATA):
spots.append(
ftc.CandlestickChartSpot(
x=float(index),
open=open_,
high=high,
low=low,
close=close,
selected=index == len(CANDLE_DATA) - 1,
tooltip=ftc.CandlestickChartSpotTooltip(
text=(
f"{label}\n"
f"Open: {open_:0.1f}\n"
f"High: {high:0.1f}\n"
f"Low : {low:0.1f}\n"
f"Close: {close:0.1f}"
),
bottom_margin=12,
),
)
)
return spots
def main(page: ft.Page):
page.title = "Candlestick chart"
page.padding = 24
page.theme_mode = ft.ThemeMode.DARK
info = ft.Text("Interact with the chart to see event details.")
spots = build_spots()
min_x = -0.5
max_x = len(spots) - 0.5
min_y = min(low for _, _, _, low, _ in CANDLE_DATA) - 1
max_y = max(high for _, _, _, _, high in CANDLE_DATA) + 1
def handle_event(e: ftc.CandlestickChartEvent):
if e.spot_index is not None and e.spot_index >= 0:
label, open_, high, low, close = CANDLE_DATA[e.spot_index]
info.value = (
f"{e.type.value} • {label}: "
f"O {open_:0.1f} H {high:0.1f} L {low:0.1f} C {close:0.1f}"
)
else:
info.value = f"{e.type.value} • outside candlesticks"
info.update()
chart = ftc.CandlestickChart(
expand=True,
min_x=min_x,
max_x=max_x,
min_y=min_y,
max_y=max_y,
baseline_x=0,
baseline_y=min_y,
bgcolor=ft.Colors.with_opacity(0.2, ft.Colors.BLUE_GREY_900),
horizontal_grid_lines=ftc.ChartGridLines(interval=2, dash_pattern=[2, 2]),
vertical_grid_lines=ftc.ChartGridLines(interval=1, dash_pattern=[2, 2]),
left_axis=ftc.ChartAxis(
label_spacing=2,
label_size=60,
title=ft.Text("Price (k USD)", color=ft.Colors.GREY_300),
show_min=False,
),
bottom_axis=ftc.ChartAxis(
labels=[
ftc.ChartAxisLabel(
value=index,
label=ft.Text(name, color=ft.Colors.GREY_300),
)
for index, (name, *_rest) in enumerate(CANDLE_DATA)
],
label_spacing=1,
label_size=40,
show_min=False,
show_max=False,
),
spots=spots,
tooltip=ftc.CandlestickChartTooltip(
bgcolor=ft.Colors.BLUE_GREY_800,
horizontal_alignment=ftc.HorizontalAlignment.CENTER,
fit_inside_horizontally=True,
),
handle_built_in_touches=True,
on_event=handle_event,
)
page.add(
ft.Container(
expand=True,
border_radius=16,
padding=20,
content=ft.Column(
expand=True,
spacing=20,
controls=[
ft.Text(
"Weekly OHLC snapshot (demo data)",
size=20,
weight=ft.FontWeight.BOLD,
),
chart,
info,
],
),
)
)
ft.run(main)
Properties#
animation: AnimationValue = field(
default_factory=lambda: Animation(
duration=Duration(milliseconds=150), curve=LINEAR
)
)
Controls chart implicit animations.
bottom_axis: ChartAxis | None = None
Appearance of the bottom axis, its title and labels.
handle_built_in_touches: bool = True
Allows the chart to manage tooltip visibility automatically.
horizontal_grid_lines: ChartGridLines | None = None
Horizontal grid lines configuration.
interactive: bool = True
Enables automatic tooltips and highlighting when hovering the chart.
long_press_duration: DurationValue | None = None
The duration of a long press on the chart.
right_axis: ChartAxis | None = None
Appearance of the right axis, its title and labels.
rotation_quarter_turns: Number = 0
Number of quarter turns (90-degree increments) to rotate the chart.
spots: list[CandlestickChartSpot] = field(
default_factory=list
)
Candlesticks to display on the chart.
tooltip: CandlestickChartTooltip | None = field(
default_factory=lambda: CandlestickChartTooltip()
)
Tooltip configuration for the chart.
touch_spot_threshold: Number | None = None
The distance threshold to consider a touch near a candlestick.
vertical_grid_lines: ChartGridLines | None = None
Vertical grid lines configuration.
Events#
on_event: EventHandler[CandlestickChartEvent] | None = None
Called when an event occurs on this chart.
