CupertinoSegmentedButton

An iOS-style segmented button.

Inherits: LayoutControl

Properties

Events

Examples#

Live example

Basic Example#

import flet as ft


def main(page: ft.Page):
    page.theme_mode = ft.ThemeMode.LIGHT

    page.add(
        ft.CupertinoSegmentedButton(
            selected_index=1,
            selected_color=ft.Colors.RED_400,
            on_change=lambda e: print(f"selected_index: {e.data}"),
            padding=ft.Padding.symmetric(vertical=20, horizontal=50),
            controls=[
                ft.Text("One"),
                ft.Container(
                    padding=ft.Padding.symmetric(vertical=10, horizontal=30),
                    content=ft.Text("Two"),
                ),
                ft.Container(
                    padding=ft.Padding.symmetric(vertical=5, horizontal=10),
                    content=ft.Text("Three"),
                ),
            ],
        ),
    )


ft.run(main)

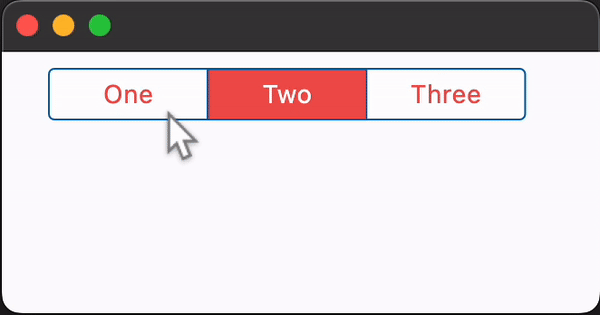

basic

Adjusting segments padding#

import flet as ft


def main(page: ft.Page):
    page.theme_mode = ft.ThemeMode.LIGHT

    def handle_vertical_change(e: ft.Event[ft.Slider]):
        segmented_button.controls[1].padding = ft.Padding.only(
            top=e.control.value, bottom=e.control.value
        )
        page.update()

    def handle_horizontal_change(e: ft.Event[ft.Slider]):
        segmented_button.controls[2].padding = ft.Padding.only(
            left=e.control.value, right=e.control.value
        )
        page.update()

    page.add(
        segmented_button := ft.CupertinoSegmentedButton(
            selected_index=1,
            selected_color=ft.Colors.RED_400,
            unselected_color=ft.Colors.GREY_400,
            on_change=lambda e: print(f"selected_index: {e.data}"),
            controls=[
                ft.Text("All"),
                ft.Container(
                    padding=ft.Padding.symmetric(vertical=30, horizontal=0),
                    content=ft.Text("None"),
                ),
                ft.Container(
                    padding=ft.Padding.symmetric(vertical=0, horizontal=30),
                    content=ft.Text("Some"),
                ),
            ],
        ),
        ft.Text("Vertical padding button 1: "),
        ft.Slider(
            label="{value}",
            min=0,
            max=50,
            divisions=50,
            value=30,
            on_change=handle_vertical_change,
        ),
        ft.Text("Horizontal padding button 2:"),
        ft.Slider(
            label="{value}",
            min=0,
            max=50,
            divisions=50,
            value=30,
            on_change=handle_horizontal_change,
        ),
        ft.Text(
            value="*note that padding changes to one segment can effect padding on other segments*",
            theme_style=ft.TextThemeStyle.LABEL_MEDIUM,
            color=ft.Colors.ORANGE_ACCENT,
        ),
    )


ft.run(main)

Properties#

border_color #

border_color: ColorValue | None = None

The color of this button's border.

click_color #

click_color: ColorValue | None = None

The color used to fill the background of this control when temporarily interacting with through a long press or drag.

Defaults to the selected_color with 20% opacity.

controls #

controls: list[Control]

The list of segments to be displayed.

Note

Must contain at least two visible Controls.

Raises:

disabled_color #

disabled_color: ColorValue | None = None

The color used to fill the background of the segment when it is disabled.

If None, this color will be 50% opacity of the selected_color when the segment is selected. If the segment is unselected, this color will be set to the unselected_color.

disabled_text_color #

disabled_text_color: ColorValue | None = None

The color used for the text of the segment when it is disabled.

padding #

padding: PaddingValue | None = None

This button's padding.

selected_color #

selected_color: ColorValue | None = None

The color of this button when it is selected.

selected_index #

selected_index: int = 0

The index (starting from 0) of the selected segment in the controls list.

Raises:

unselected_color #

unselected_color: ColorValue | None = None

The color of this button when it is not selected.

Events#

on_change #

on_change: (
    ControlEventHandler[CupertinoSegmentedButton] | None
) = None

Called when the state of the button is changed - when one of the controls is clicked.
