NavigationRail#

A material widget that is meant to be displayed at the left or right of an app to navigate between a small number of views, typically between three and five.

Inherits: LayoutControl

Properties

Events

Examples#

Live example

Basic Example#

import flet as ft


def main(page: ft.Page):
    rail = ft.NavigationRail(
        selected_index=0,
        label_type=ft.NavigationRailLabelType.ALL,
        min_width=100,
        min_extended_width=400,
        group_alignment=-0.9,
        on_change=lambda e: print("Selected destination:", e.control.selected_index),
        leading=ft.FloatingActionButton(
            icon=ft.Icons.CREATE,
            content="Add",
            on_click=lambda e: print("FAB clicked!"),
        ),
        destinations=[
            ft.NavigationRailDestination(
                icon=ft.Icons.FAVORITE_BORDER,
                selected_icon=ft.Icons.FAVORITE,
                label="First",
            ),
            ft.NavigationRailDestination(
                icon=ft.Icon(ft.Icons.BOOKMARK_BORDER),
                selected_icon=ft.Icon(ft.Icons.BOOKMARK),
                label="Second",
            ),
            ft.NavigationRailDestination(
                icon=ft.Icons.SETTINGS_OUTLINED,
                selected_icon=ft.Icon(ft.Icons.SETTINGS),
                label=ft.Text("Settings"),
            ),
        ],
    )

    page.add(
        ft.Row(
            expand=True,
            controls=[
                rail,
                ft.VerticalDivider(width=1),
                ft.Column(
                    alignment=ft.MainAxisAlignment.START,
                    expand=True,
                    controls=[ft.Text("Body!")],
                ),
            ],
        )
    )


ft.run(main)

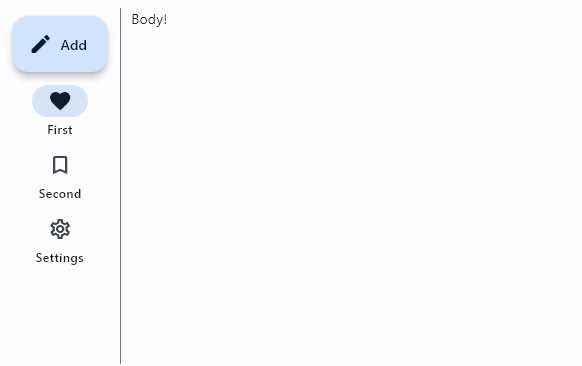

basic

Properties#

bgcolor #

bgcolor: ColorValue | None = None

Sets the color of the Container that holds all of the NavigationRail's contents.

destinations #

destinations: list[NavigationRailDestination] = field(
    default_factory=list
)

Defines the appearance of the button items that are arrayed within the navigation rail.

The value must be a list of two or more NavigationRailDestination instances.

elevation #

elevation: Number | None = None

Controls the size of the shadow below the NavigationRail.

Defaults to 0.0.

Raises:

extended #

extended: bool = False

Indicates that the NavigationRail should be in the extended state.

The extended state has a wider rail container, and the labels are positioned next to the icons. min_extended_width can be used to set the minimum width of the rail when it is in this state.

The rail will implicitly animate between the extended and normal state.

If the rail is going to be in the extended state, then the label_type must be set to none.

group_alignment #

group_alignment: Number | None = None

The vertical alignment for the group of destinations within the rail.

The NavigationRailDestinations are grouped together with the trailing widget, between the leading widget and the bottom of the rail.

The value must be between -1.0 and 1.0.

If group_alignment is -1.0, then the items are aligned to the top. If group_alignment is 0.0, then the items are aligned to the center. If group_alignment is 1.0, then the items are aligned to the bottom.

Defaults to -1.0.

indicator_color #

indicator_color: ColorValue | None = None

The color of the navigation rail's indicator.

indicator_shape #

indicator_shape: OutlinedBorder | None = None

The shape of the navigation rail's indicator.

Defaults to StadiumBorder().

label_type #

label_type: NavigationRailLabelType | None = None

Defines the layout and behavior of the labels for the default, unextended navigation rail.

When a navigation rail is extended, the labels are always shown.

Defaults to None - no labels are shown.

leading #

leading: Control | None = None

An optional leading control in the rail that is placed above the destinations.

Its location is not affected by group_alignment.

Typically a FloatingActionButton, but may also be a non-button, such as a logo.

min_extended_width #

min_extended_width: Number | None = None

The final width when the animation is complete for setting extended to True.

Defaults to 256.

Raises:

min_width #

min_width: Number | None = None

The smallest possible width for the rail regardless of the destination's icon or label size.

Defaults to 72.

This value also defines the min width and min height of the destinations.

To make a compact rail, set this to 56 and use label_type='none'.

Raises:

selected_index #

selected_index: int | None = None

The index into destinations for the current selected NavigationRailDestination or None if no destination is selected.

selected_label_text_style #

selected_label_text_style: TextStyle | None = None

The TextStyle of a destination's label when it is selected.

When a destination is not selected, unselected_label_text_style will instead be used.

trailing #

trailing: Control | None = None

An optional trailing control in the rail that is placed below the destinations.

Its location is affected by group_alignment.

This is commonly a list of additional options or destinations that is usually only rendered when extended=True.

unselected_label_text_style #

unselected_label_text_style: TextStyle | None = None

The TextStyle of a destination's label when it is not selected.

When a destination is selected, selected_label_text_style will instead be used.

use_indicator #

use_indicator: bool | None = None

Whether to add a rounded navigation indicator behind the selected destination's icon.

The indicator's shape will be circular if label_type is NavigationRailLabelType.NONE, or a StadiumBorder if label_type is NavigationRailLabelType.ALL or NavigationRailLabelType.SELECTED.

If None, defaults to NavigationRailTheme.use_indicator. If that is also None, defaults to Theme.use_material3.

Events#

on_change #

on_change: ControlEventHandler[NavigationRail] | None = None

Called when selected destination changed.
